It has only just begun but this is what I have so far.
Sony CDX-L570X single CD player.
Pioneer TS-C1620 16cm component speakers with separate crossover in the
standard front location.
Tweeters also fit in behind standard grilles to maintain standard
Front doors are also fitted with stick on sound deadening.

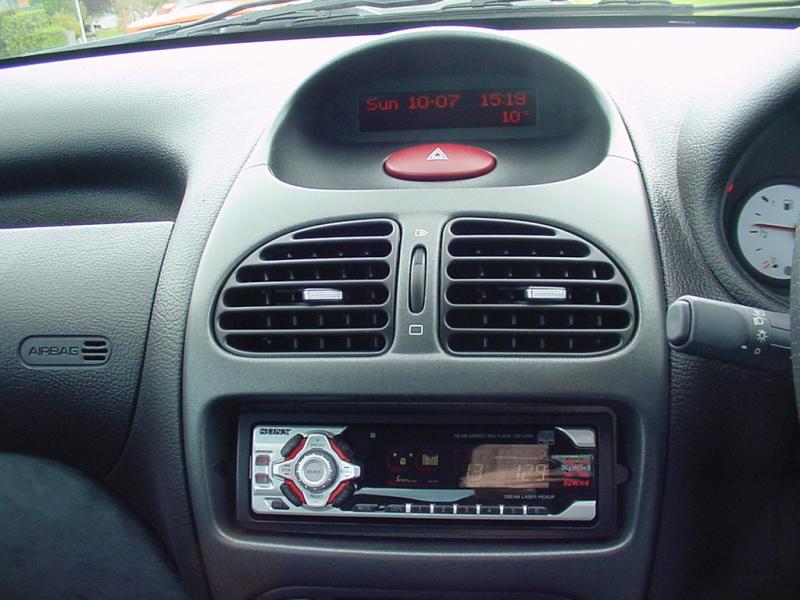

Sony stereo install is straight forward.
Removal of standard Eurovox is easy. 4x 4mm allen keys to release standard
Integrate wiring of new stereo using supplied wiring instructions to the
cars existing loom. (MMC's note: see below)
Peugeot owners manual also details factory loom colours and functions.
Integration of new stereo should be easy and straight forward if care is
Note: Eurovox stereo has the facility for illumination when lights are
turned on, but there is no wire for it in the factory loom which runs to it)
People who wish to retain the factory stereo would also be happy to know
If your new stereo has an input for illumination or if you wish to make your
factory Eurovox illuminate in the way it should when headlights are turned
on you will need to track down where to connect to in the loom and run a new
wire to the stereo. My new stereo does not have this function so I did not
worry but it would be easy to find. I would look at instrument panel
brightness adjusting potentiometer for the required voltage to tap into.
(+12VDC when lights are on, 0VDC when lights are off)

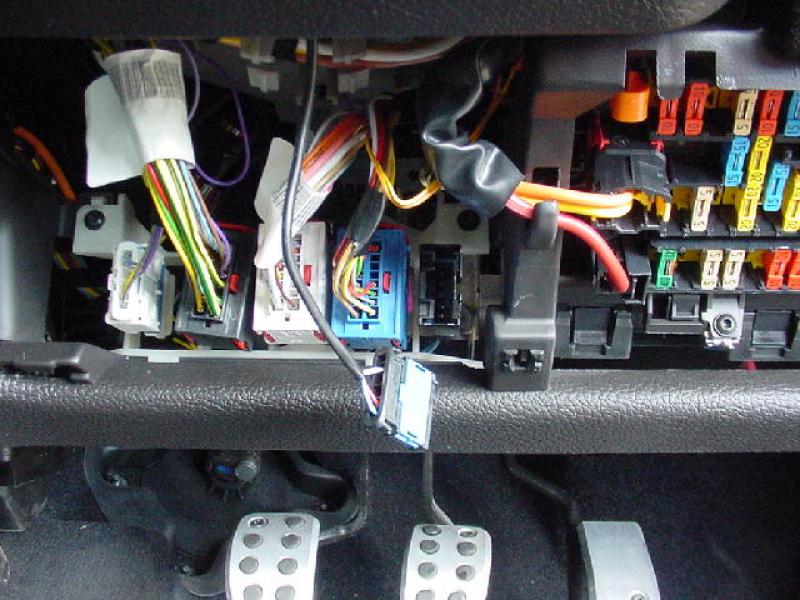

Eurovox unit is hard wired to stalk controller. Can be disconnected under
dash prior to removal of stereo.
Autoleads (UK based company) make interfaces to work with Sony headunits and
factory stalk controllers... But I was unable to integrate this in my car.
I will probably just remove factory stalk or fit Sony genuine item at a
I attempted to fit the supposed correct item for my car a Autoleads PC9-123
but it did not work. It appears as though the stalks and car loom wiring are
very different between UK and Australia.
Speakers: The Pioneer front speakers are a direct replacement and fit
perfectly in the stock locations. (Plastic at rear of stock brackets needs
to be cut out due to larger magnet size.) It easy enough to remove door
trims. Requires removal of 4 hex screws... Door trims pull off easily after
removal of screws as they just have cheap clips (which break easily)
Take care when reinstalling door trim as these clips break easily if not
lined up exactly.
Sound deadening: The stick on sound deadening does improve things a little
but does not cure the rattles and vibrations when you turn it up a lot. The
spray on sound deadening is worth the time and money.
Miscellaneous: When fitting a new Stereo to the Peugeot you will also need
to buy a Euro adaptor for the antenna lead. European car antennas are
different to standard Australian ones.
Long term plans: I would really love a Pioneer OEL display head unit, a
decent 4 channel amp and a custom made rear parcel tray with 7x10's.
Proper spray on sound deadening would also be nice.
But for now I will make do...
If anyone has any specific questions I would be happy to help (If I can)
Damian Robins firstname.lastname@example.org
(MMC's Note: Damian's been putting in a lot of effort to try and figure out what's the story with getting an adapter to work with the Audio Stalk fitted to Australian 206's. He's gone through the Audiolead ones (as well as toasting one whilst trying to figure out how it works) and is now looking at the In car Development's one a SON13PT).
Wiring for Eurovox CD Player (factory fitted in Australian Peugeot 206's)
|Red||Accessories (+12VDC via switch)|
|Grey||Electric antenna output (+12VDC out with Radio on. 0VDC when playing CD)|
|Orange||Illumination (+12VDC via light switch)|
|Pink||Permanent Supply (+12VDC Battery)|
|Yellow||(+) Right Rear Speaker|
|Yellow/Black||(-) Right Rear Speaker|
|White||(+) Front Right Speaker|
|White/Black||(-) Front Right Speaker|
|Green||(+) Front Left Speaker|
|Green/Black||(-) Front Left Speaker|
|Blue||(+) Left Rear Speaker|
|Blue/Black||(-) Left Rear Speaker|
